-52%

DC 24V to 12V Step Down Converter,DC 15V-35V to 12V 10A max 120W Power Voltage Buck Converter

Original price was: $22.99.Current price is: $10.99.
Size
252 people are viewing this right now
100 in stock
Trust Badge
Guaranteed safe & secure checkout

Additional information

Additional information

Size

DC 15-35V to 12V 10A 120W

DC 24V to 12V Step Down Converter,DC 15V-35V to 12V 10A max 120W Power Voltage Buck Converter

DC 24V to 12V Step Down Converter,DC 15V-35V to 12V 10A max 120W Power Voltage Buck Converter

Original price was: $22.99.Current price is: $10.99.

Description

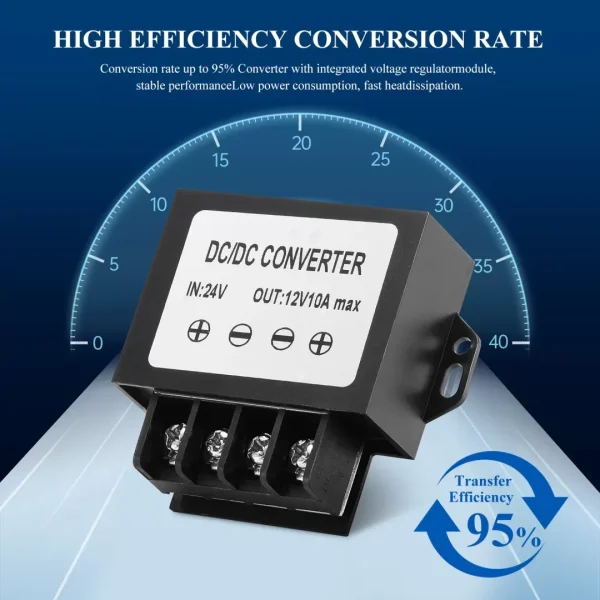

  • DC 24V to 12V Buck Converter: Rated input voltage 24V, input range 15-35V, output voltage: 12V, output current up to 10A, output power 120WMAX, transmission efficiency 95%, to meet the different power supply requirements of various environments, to ensure stable and efficient power supply.

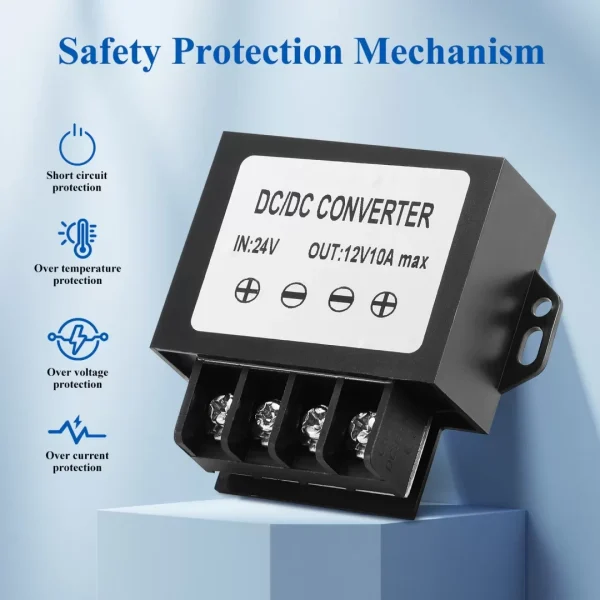

  • Safety Protection Mechanism: Provide a variety of intelligent protection functions such as over-current, over-voltage and short-circuit to ensure the safe operation of the equipment in various situations. Note: This product does not have input reverse protection, please pay attention to whether the input is correct, the negative pole reverse, will lead to permanent damage to the product
  • High-quality materials: 24V to 12V10A power buck converter passes drop test and vibration test safety test, natural heat dissipation; -20°C to 65°C working temperature range for safe use and durability; mini converter module is compact and portable.
  • WIDE APPLICATIONS: The converter is widely used in golf carts, cars, trucks, surveillance systems, railroad signals, instrumentation, DIY projects, etc., which can maintain the optimal function of the electronic devices in various environments.
  • Package Includes: 1x 24V to 12V Buck Converter and 1x Triangular screwdriver. The innovative combination of voltage converter and screwdriver makes it easier for you to install and maintain the DC Buck Converter by yourself. Note: Do not reverse the positive and negative terminals of the input and output ports

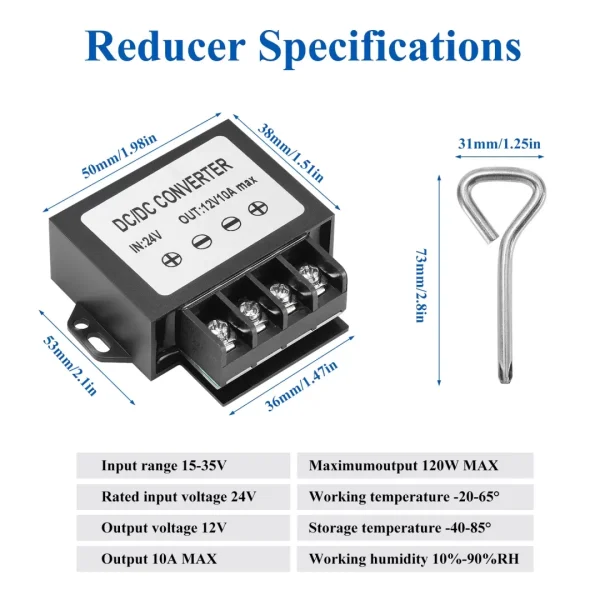

DC 24V to 12V10A Buck Voltage Regulator Specifications:

Rated input voltage: 24V

Output Voltage: 12V

Input Range: 15V-35V

Output Power: 120W MAX

Input Amps: 10A MAX

Operating Temperature: -20° to 65°

Storage Temperature: -40° to 85°

Operating Humidity: 10% to 90% RH

Size: 6.3*5.3*2cm

incoming line:7.62POST

outlet line:7.62POST



Buck converter function features:

1.Voltage converter has over-temperature protection, over-current protection, over-voltage protection, support for short-circuit protection, short-circuit phenomenon at the output terminal, the product stops working without output, troubleshooting to restore the output.

2. Sufficient power, stable voltage output, high conversion efficiency, aging resistance, good heat dissipation, can withstand a variety of conditions while maintaining its optimal function to ensure long-term use.

3. The power converter is compact and versatile. It can be easily installed in most spaces, ensuring that it will not interfere with your other equipment or gadgets.

4. Meet DIY demand: you can install the DC converter by yourself, just remove the screws on the four ports, strip the insulation on the wires to the appropriate length, wrap the copper wire around the connector, and then screw on the screws; Note: Don’t reverse the positive and negative poles of the input and output ports!



Special Attention:

1.The product does not have input reverse protection, pay attention to the input correct, negative reverse, will lead to permanent damage to the product.

2.The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources.

3.Do not use it near a heat source (such as a fire or a heater)

4.Do not connect the input line to 220V electricity

5.Do not put the product into the fire or heat it

6.Do not short-circuit the positive or negative poles of the product with wires or other metal objects

7.Non-professional personnel are prohibited to disassemble and repair by themselves

8.Product working environment temperature: -20-65℃, when the working environment temperature is 35℃, in order to extend the service life of the power supply, please use the rated output current of 50%.



Package Includes

1 x 24V to 12V 10A step-down converter

1 x Triangular screwdriver

Rating & Review

Based on 5 Reviews
  1. Amazonカスタマー
    (verified owner)
    とても使いやすいです。
    作りも良くて、機能性抜群、コスパも良いのでおすすめです。
    Helpful? 0 0
  2. shiongu
    (verified owner)
    入力27.7Vで 出力側12.2V
    負荷ありなしで大きな電圧変動もなし

    12V側で8Aそこそこの負荷を取ってテストしましたが
    入力側が4.1Aとそこまで効率が悪い感じの変換ではありませんが
    本体の放熱性が単体ではあまりよくないようで
    30分ほどで裏面が66度程度まで上昇。

    連続で負荷を取る場合は背面を放熱できる金属類にあてつけてあげないと火傷の恐れあり

    DC 24V to 12V Step Down Converter,DC 15V-35V to 12V 10A max 120W Power Voltage Buck Converter
    DC 24V to 12V Step Down Converter,DC 15V-35V to 12V 10A max 120W Power Voltage Buck Converter
    DC 24V to 12V Step Down Converter,DC 15V-35V to 12V 10A max 120W Power Voltage Buck Converter
    Helpful? 0 0
  3. dmow
    (verified owner)
    I connected a 12V power supply to a 12V to 24V converter, then connected the 24 volts to a 24V to 12V converter, and it worked well at 8A, the converter only became a little warm, I could hold it in my hand without difficulty.
    I’ll use this to transmit 12V over 200 feet of wire to power some remote IP cameras. With low cost wires the voltage drop would be about 5 volts, so simply using 12V would only provide 7V to the cameras. Raising the voltage to 24V will produce around 19V at the end of the wires, and the 24V to 12V converter will restore the 19V to 12V.
    DC 24V to 12V Step Down Converter,DC 15V-35V to 12V 10A max 120W Power Voltage Buck Converter
    DC 24V to 12V Step Down Converter,DC 15V-35V to 12V 10A max 120W Power Voltage Buck Converter
    Helpful? 0 0
  4. Aya Rose
    (verified owner)
    Der Spannungswandler funktioniert einwandfrei. Er gibt eine konstante Spannung von 12V aus. So kann man dort beispielsweise eine KFZ Steckdose anbringen und als Eingang einen Akkuschrauber Akku anschließen. 10A ist dabei auch mehr als ausreichend.
    Helpful? 0 0
  5. janssens hans
    (verified owner)
    Doet waar het voor gemaakt is.
    Helpful? 0 0
